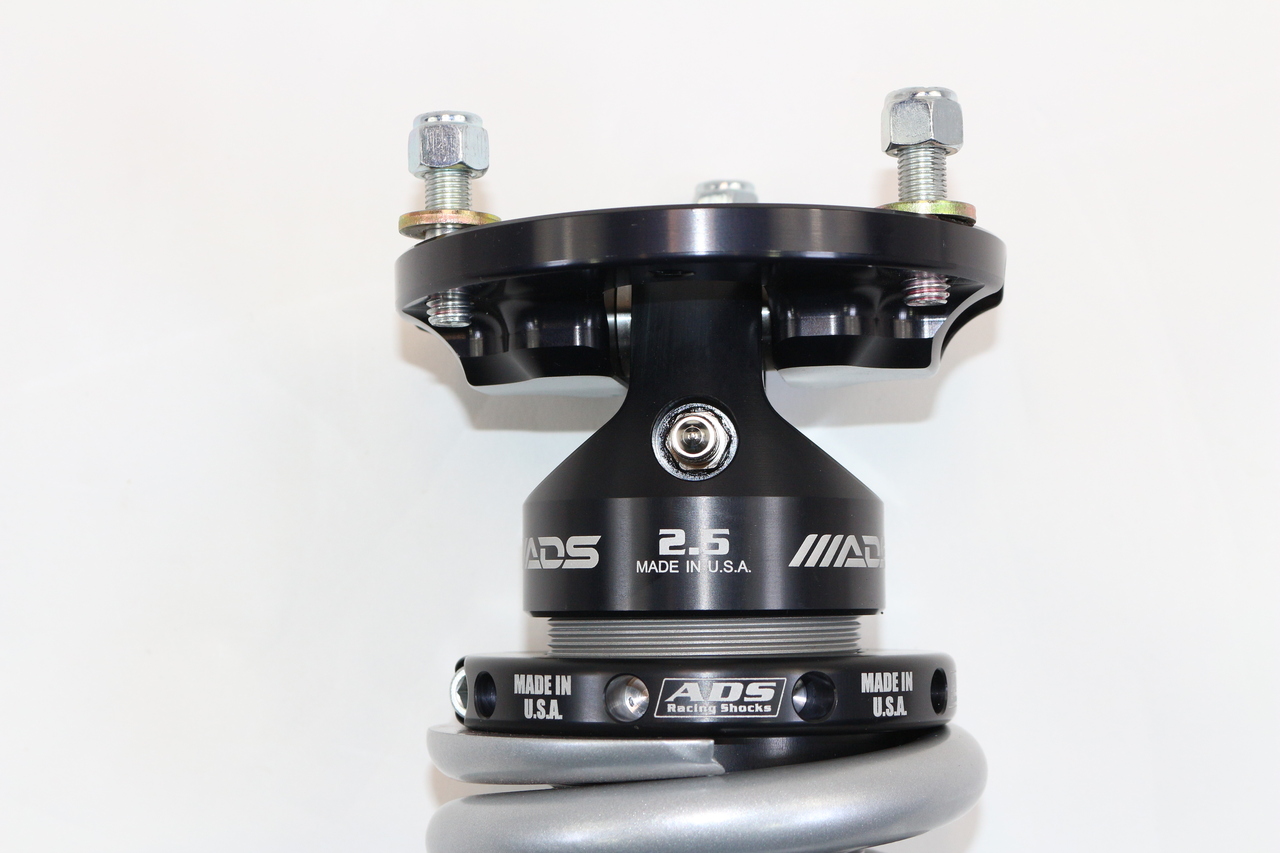

The ADS Mesa 2.5" Coilovers - Front delivers 4.55 IN of usable stroke (collapsed 17.75 IN, extended 22.3 IN), purpose-built for demanding off-road and desert terrain.
Now that you've got the look and performance with your New ADS Mesa shocks, don't overlook the other off-road must-haves! Round out your build with industry best exhaust from Flowmaster, custom shifters, and heavy-duty differential covers from B&M.
Key Specs
- Stroke: 4.55 IN
- Collapsed Length: 17.75 IN
- Extended Length: 22.3 IN
- Body Diameter: 2.5 IN
- Shaft Diameter: 0.875 IN
- Spring Rate: 600 PPI
- Part Number: 100ADS-10112
Features & Benefits
- Internal floating piston (IFP) ensures consistent damping performance, improved responsiveness, and increased longevity and reliability
- Large Bore 2.50-inch shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- UV-stable ceramic powder coated steel shock body for durability and strength
- Black anodized billet aluminum top and bottom caps
- 0.875-inch diameter hard-chrome plated steel shock shafts for superior corrosion resistance
- Spacers machined from 304 stainless steel for corrosion resistance
- High-carbon chrome plated steel spherical bearings
- Premium full synthetic shock oil
- Fully rebuildable
Fits: 2003-2024 Toyota 4Runner.
Hand-Built. Desert-Tested. Designed, machined, and assembled in Tucson, Arizona by ADS Racing Shocks.
