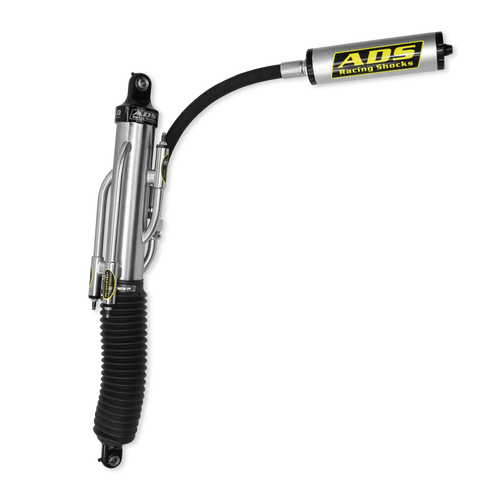

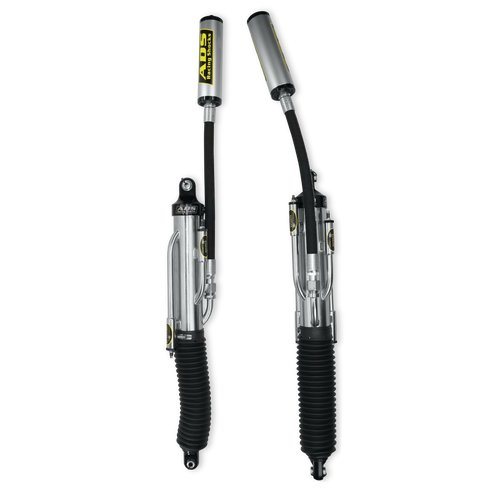

The ADS Direct Fit 3 in. 3-Tube Bypass Reservoir Shocks - Rear delivers 11.67 IN of usable stroke (collapsed 17.995 IN, extended 29.665 IN), purpose-built for demanding off-road and desert terrain.
Race-proven 3-tube bypass rears with external reservoirs provide position-sensitive damping for plush small-bump compliance and firm, controlled bottom-out on big hits. Designed as a direct bolt-on for 2010-2014 Raptors with 0-3" rear lift, these shocks dramatically increase stability, heat capacity, and traction over rough terrain while maintaining on-road manners-perfect for enthusiasts who demand real off-road performance.
Key Specs
- Stroke: 11.67 IN
- Collapsed Length: 17.995 IN
- Extended Length: 29.665 IN
- Body Diameter: 3 IN
- Shaft Diameter: 0.875 IN
- Reservoir: Piggyback
- Part Number: 300-10RTR-000
Features & Benefits
- Large Bore 3.0 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
- Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.
- Black anodized billet aluminum top and bottom caps
- Hard-chrome plated steel shock shafts for superior corrosion resistance
- Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
- Shaeffer's high grade temperature stable synthetic hydraulic fluid
- Fully rebuildable
- Made in America
Fits: 2010-2014 Ford F-150.
Hand-Built. Desert-Tested. Designed, machined, and assembled in Tucson, Arizona by ADS Racing Shocks.
